E-Line KT Trolley Busbar

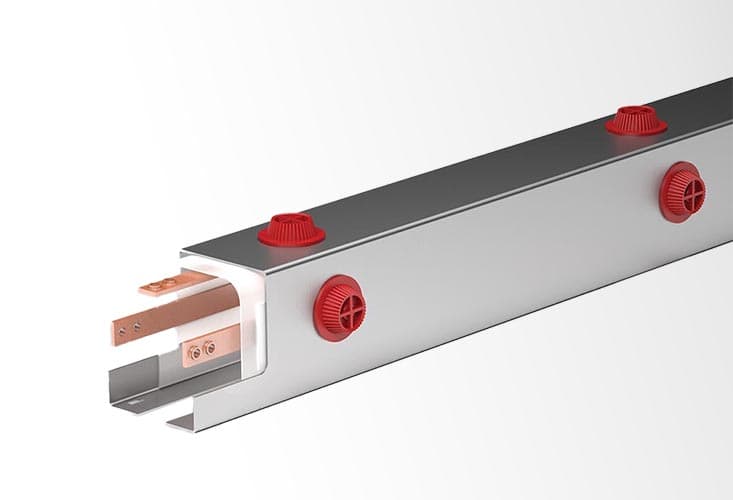

The EAE E-Line KT is a compact trolley busbar system designed to provide continuous electrical power to moving equipment. The system uses continuous copper conductors within a pre-galvanised sheet-metal housing, with a moving current collector maintaining electrical connection as the connected equipment travels along the busbar route.

E-Line KT is particularly suited to applications such as textile spreading and cutting tables, moving doors and ceilings, assembly and test lines, and other moving industrial equipment. Its enclosed conductor arrangement helps protect users from direct contact while providing a practical alternative to trailing and reeled power cables. Manly-Tech supplies EAE E-Line KT systems and can assist with product selection, technical coordination and engineering requirements.

SpecificationValue
Product TypeEnclosed trolley busbar system
Rated Current100A
Conductor MaterialCopper
ConductorsContinuous copper conductors
Conductor Configuration3 conductors
HousingPre-galvanised sheet metal
Housing ColourMetallic
Standard Length2.5m
Special Lengths1.0m / 1.5m / 2.0m
Temperature Range-20°C to +55°C
Current CollectorKT-A3 moving current collector
Current Collector Rating25A
Collector Configuration3-pole
Installation SupportSliding hangers at approximately 1.3–1.5m intervals
Typical ApplicationMoving industrial equipment, cutting tables and assembly/test lines

EAE E-Line KT products are supplied subject to the manufacturer’s applicable warranty terms and installation requirements. Contact Manly-Tech for warranty information applicable to your specific product configuration and project.
