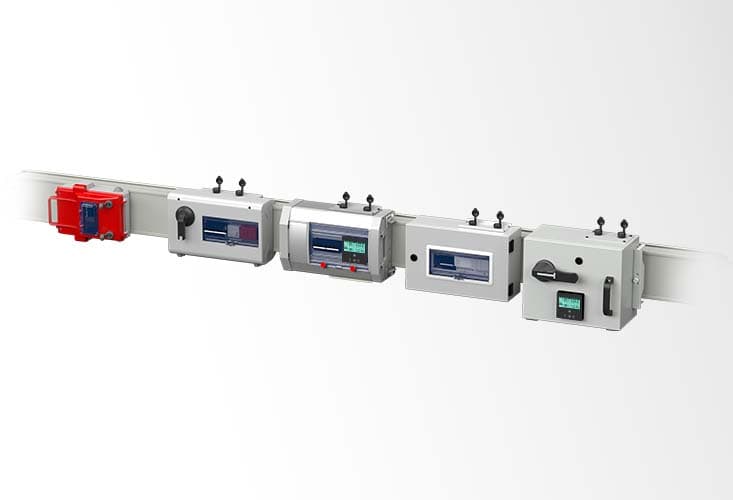

Busbar Tap-Off Boxes

EAE busbar tap-off boxes provide a flexible means of drawing electrical power from a busbar trunking system and distributing it to connected loads. Available in a range of enclosure materials and current capacities, tap-off boxes can be configured with protective and switching devices to suit different project requirements.

EAE offers compact plastic, aluminium and sheet-metal tap-off box solutions, including options for circuit breakers, residual-current devices, fuses, surge protection, metering and energy monitoring. Manly-Tech can assist with selection of compatible EAE tap-off boxes for power distribution, data centre and other commercial or industrial applications.

SpecificationValue
Product TypeBusbar tap-off box
Headline Current Range80A–400A
Compact Plastic OptionsUp to 80A
Plastic Housing Range16A–160A depending on system
Aluminium Housing Range80A–125A
Sheet-Metal Housing Range125A–400A
Protection DegreeIP55
Enclosure MaterialsPlastic, aluminium or sheet metal
Switching / Protection OptionsMCB, MCCB, switch, RCD and fuse configurations
Additional DevicesSurge arresters, energy analysers and energy meters
MonitoringEnergy monitoring and management options
ConnectivityRJ-45 connectivity available
CustomisationConfigurable component selection based on project requirements
Typical ApplicationBranch power distribution from EAE busbar systems

EAE tap-off box products are supplied subject to the manufacturer’s applicable warranty terms and installation requirements. Contact Manly-Tech for warranty information applicable to your specific product configuration and project.

EAE Busbar Tap-Off Box Product Information

Current technical information, enclosure options, protection features and configurable device options for EAE busbar tap-off boxes.

EAE Busbar Tap-Off Boxes

EAE Busbar General Information

General guidance covering EAE busbar systems, tap-off boxes, current ratings and power-distribution applications.

EAE Busbar General Information

EAE Busbar Catalogues & Brochures

Product catalogues for EAE busbar systems containing model-specific tap-off box dimensions, ratings and compatibility information.

EAE Catalogues & Brochures
