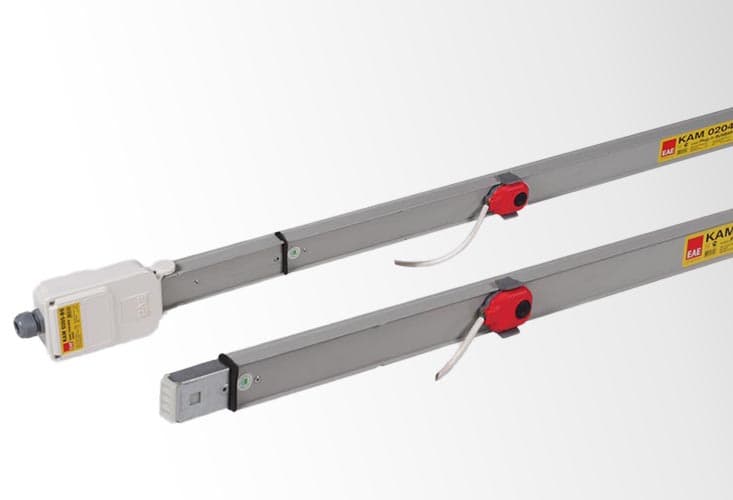

EAE E-Line KAM Lighting Busbar

The EAE E-Line KAM is a compact lighting busbar system designed to distribute electrical power to lighting fixtures in commercial and industrial environments. Available in 25A and 32A configurations, the system uses full-length tin-plated copper conductors within a sheet-metal housing and supports flexible plug-in connections along the busbar route.

E-Line KAM can be used for industrial, commercial and decorative lighting installations, with single-phase and three-phase conductor configurations available. Typical applications include factories, workshops, production and storage areas, car parks, logistics facilities, offices, supermarkets and shopping centres. Manly-Tech supplies EAE E-Line KAM systems and can assist with product selection, technical coordination, BIM and engineering requirements.

SpecificationValue
Product TypeLighting busbar system
Rated Current25A / 32A
Conductor MaterialCopper
Conductor FinishFull-length tin plated
Conductor Configuration2, 3, 4 or 5 conductors
Phase ConfigurationSingle-phase or three-phase
Protection DegreeIP55
Rated Insulation Voltage500V
Rated Frequency50Hz
Plug-In Spacing750mm
Tap-Off Plugs10A and 16A options
Tap-Off BoxesUp to 32A
HousingSheet metal
Optional FinishRAL 7038 electrostatic powder-coated finish
Conductor InsulationFlame-resistant, halogen-free insulation
StandardIEC 61439-1 / IEC 61439-6
Typical ApplicationCommercial and industrial lighting distribution



KAM and E-Line SL

E-Line KAM remains part of EAE’s lighting busbar product range and is supported by current technical documentation and BIM resources. For new lighting installations, EAE also offers the newer E-Line SL system. Contact Manly-Tech for assistance selecting the most appropriate system for your project

EAE E-Line KAM products are supplied subject to the manufacturer’s applicable warranty terms and installation requirements. Contact Manly-Tech for warranty information applicable to your specific product configuration and project.

EAE E-Line KAM-KAP Product Catalogue

Technical specifications, conductor configurations, components, tap-off products and selection information for the E-Line KAM and KAP busbar range.

EAE E-Line KAM-KAP Catalogue

EAE E-Line KAM-KAP Installation Guide

Installation guidance for KAM/KAP busbar sections, feeder units, joints and associated components.
