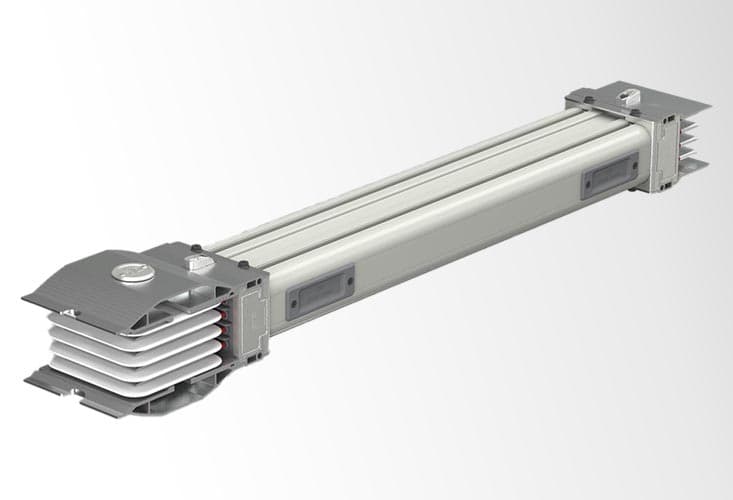

EAE E-Line CCR Cast Resin Busbar

The EAE E-Line CCR is a high-current cast-resin busbar system designed for demanding indoor and outdoor power distribution applications. Its aluminium housing protects the DURACOMP cast-resin composite system from environmental exposure, while IP68 protection makes it suitable for harsh operating conditions.

E-Line CCR is designed for applications such as transformer-to-switchboard connections, main distribution lines, industrial facilities, tunnels, power plants and other environments requiring high levels of protection. Manly-Tech supplies EAE E-Line CCR systems and can assist with product selection, technical coordination, BIM and engineering requirements.

SpecificationValue
Product TypeIP68 aluminium-housed cast-resin busbar system
Rated Current600A–6300A
Conductor OptionsFull-length tin-plated aluminium or copper
Protection DegreeIP68
Rated Operational VoltageUp to 1000V
Rated Insulation Voltage1000V
Rated Frequency50/60Hz
HousingAluminium housing over DURACOMP cast-resin composite
InsulationEpoxy-coated conductors / cast-resin composite insulation
StandardIEC 61439-6
Typical InstallationIndoor or outdoor, including harsh and corrosive environments

Compatibility: Compatible with E-Line KX modules

EAE E-Line CCR products are supplied subject to the manufacturer’s applicable warranty terms and installation requirements. Contact Manly-Tech for warranty information applicable to your specific product configuration and project.
