E-Line KX Busbar — 400A–6300A

Compact Busbar System — 400A–6300A

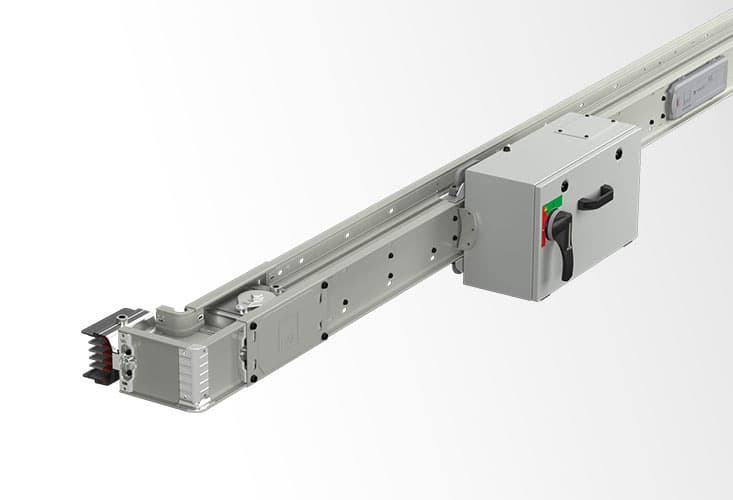

The EAE E-Line KX is a compact high-current busbar system designed for efficient electrical power transmission and distribution from 400A to 6300A. The system can be used for both horizontal and vertical distribution and is available in configurations using aluminium or copper conductors.

E-Line KX supports both plug-in and bolt-on distribution arrangements, making it suitable for applications ranging from main power transmission to flexible electrical distribution within commercial, industrial and mission-critical facilities. Manly-Tech supplies EAE E-Line KX systems and can assist with product selection, technical coordination, BIM and engineering requirements.

SpecificationValue
Product TypeCompact busbar trunking system
Rated Current400A–6300A
Conductor OptionsAluminium or copper
Distribution TypePlug-in or bolt-on
InstallationHorizontal or vertical
HousingExtruded aluminium, RAL 7038 electrostatic painted
InsulationB-class polyester film with epoxy-coated conductors
Rated Insulation Voltage1000V
Rated Operational VoltageUp to 1000V AC
Rated Frequency50Hz
StandardIEC 61439-6 / IEC 61439-1
ProtectionIP55 standard

EAE E-Line KX products are supplied subject to the manufacturer's applicable warranty terms and installation requirements. Contact Manly-Tech for warranty information applicable to your specific product configuration and project.

E-Line KX Product Catalogue

Technical specifications, product configurations, dimensions, components and application information.

EAE KX catalogues and brochures

E-Line KX Manual / Installation Guide

E-Line KX Manual / Installation GuideInstallation, handling, connection, commissioning and operational guidance for the E-Line KX busbar system.

EAE manuals and installation guides

EAE Busbar BIM & Revit Resources

BIM resources for electrical design and coordination, including EAE busbar Revit content and the EAE Busbar Plug-In. EAE's current plug-in supports Revit versions through 2026.
