E-Line CR Cast Resin Busbar

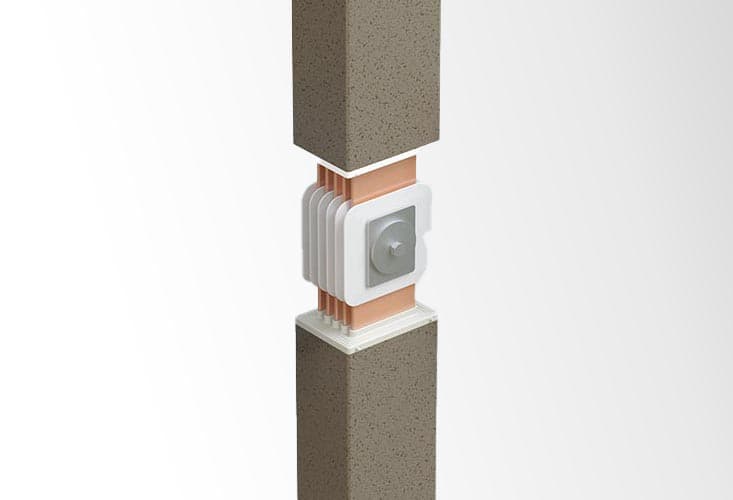

The EAE E-Line CR is a high-current cast resin busbar system designed for reliable electrical power transmission and distribution in harsh and demanding environments. Available from 630A to 6300A, the system uses full-length tin-plated aluminium or copper conductors enclosed within EAE's DURACOMP composite material of epoxy resin and pure silicon minerals.

With IP68 protection, high mechanical strength and resistance to corrosion, chemicals and fire propagation, E-Line CR is particularly suited to demanding industrial and infrastructure applications. Typical environments include transformer-to-switchboard connections, power plants, oil and gas facilities, tunnels, harbours and shipyards. Manly-Tech supplies EAE E-Line CR systems and can assist with product selection, technical coordination, BIM and engineering requirements.

SpecificationValue
Product TypeCast resin busbar trunking system
Rated Current630A–6300A
Conductor OptionsAluminium or copper
Aluminium Current Range630A–5000A
Copper Current Range800A–6300A
Conductor Configuration3, 4, 4½, 5 or 6 conductors
Protection DegreeIP68
Rated Operational Voltage1000V
Rated Insulation Voltage1000V
Rated Impulse Withstand Voltage12kV
Rated Frequency50Hz
Housing / InsulationDURACOMP epoxy resin and pure silicon mineral composite
ConductorsFull-length tin-plated aluminium or copper
Joint SystemSingle-bolt joint system
StandardIEC 61439-6 / IEC 61439-1
Typical ApplicationHigh-current distribution in harsh industrial and infrastructure environments
KX CompatibilityCompatible with E-Line KX busbar systems
Fire PerformanceElectrical continuity for up to 3 hours under fire conditions in accordance with IEC 60331-1

EAE E-Line CR products are supplied subject to the manufacturer’s applicable warranty terms and installation requirements. Contact Manly-Tech for warranty information applicable to your specific product configuration and project.
